Part No.: SY-series

Part Name: Recessed LED Lamp for 40 mm hole.
  SY-series-01
Description: 1.Long lift-time.
2.Sugre protect.
3.Low power Consumption.
4.Safety,very Low temperature.
5.Easy to installation .
6.Dimmerable

Specification:
Model No. SL20L30 SL24L60 SL48L120 SL44L60 SL88L120
Length(mm) 300 600 1200 600 1200
Led 20x3 24x3 48x3 44x3 88x3
Working Voltage 110/120v 110/220v 110/220v 110/220v 110/220v
Power Consumption 3w 3w 6w 6w 12w
Flux(Lm) 250 250 500 500 1000
C.R.I. 70~80 70~80 70~80 70~80 70~80
Power Factor 0.8 0.8 0.8 0.8 0.8

Color (CCT) Y M W
3000~3300K 4000~4500K 6000~6500K

Weight(g) 25
Origin: Made in Taiwan

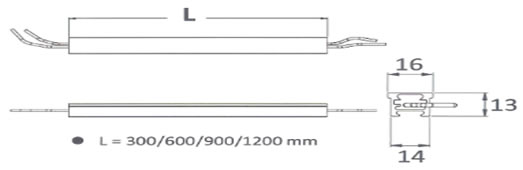

Drawing
SY-series-02

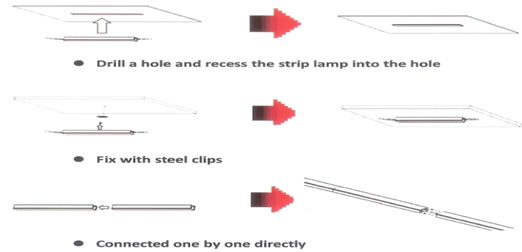

Installation
SY-series-03
