| Part Name: |
Fin-type antenna |
| |
| Description: |
1 |

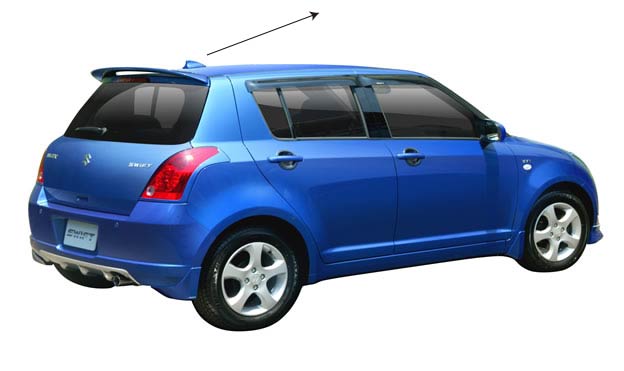

The newest shark fin antenna design with AM/FM vehicle radio reception bring to your vehicle a cool and fighting style |
| 2 |
Suitable for bigger-curved car roof suface. |
| 3 |
High sensitivity, low Distortion. |
| 4 |
No need take antenna away when car-washing. |
| 5 |
Primer-painted with black color. |
| |
| Specification: |
1 |
Frequency: |
AM:535K~1605KHz |
| FM:87.5~108KHz |
| 2 |
Impedence: |
75 Ohm |
| 3 |
Passive V.S.W.R.: |
≦2 |
| 4 |
Working Voltage: |
9~16V |
| 5 |
Power consumption: |
45~55mA/13.2V |
| 6 |
AM Gain |
9±3dB. |
 |
| 7 |
FM Gain |
15±3dB. |
| 8 |
FM IM3: |
Max. 60dBuV |
| Connector Type: |
1 |
moto-type connector |
| 2 |
V.W.- type connector |
| 3 |
GT13- type connector |
| |
| Origin: Made in Taiwan |
| E MARK Certificate |
E13 / 10R039887 |
