Part No.: YR10L40

Part Name: Recessed LED Lamp for 40mm hole.

Description: 1.Long lift-time.
2.Sugre protect.
3.Low power Consumption.
4.Safety,very Low temperature.
5.Thin,light very Low temperature.
6.Build in 10x3 L.E.D. Chip.

Specification: Model No. YR10L401 YR10L402
Working Voltage 110/120v 220v
Power Consumption 1.2 1.2
Flux(Lm) 85 85
C.R.I. 70~80 70~80
Power Factor 0.65 0.65

Color (CCT) Y M W
3000~3300K 4000~4500K 6000~6500K
  YR10L40-01
Weight(g) 25

Origin: Made in Taiwan

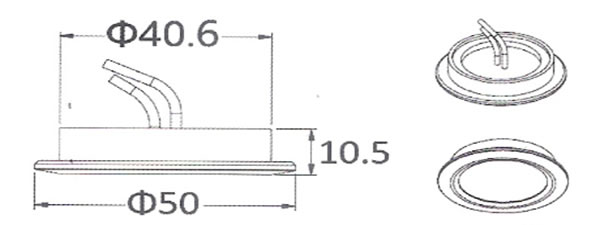

Drawing
YR10L40-02
