Part No.: YR20L40

Part Name: Recessed LED Lamp for 40 mm hole.
  YR20L40-01
Description: 1.Long lift-time.
2.Sugre protect.
3.Low power Consumption.
4.Safety,very Low temperature.
5.Thin,light very Low temperature.
6.Build in 20x3 L.E.D. Chip.

Specification: Model No. YR20L401 YR20L402
Working Voltage 110/120v 220v
Power Consumption 2.8 2.8
Flux(Lm) 225 225
C.R.I. 70~80 70~80
Power Factor 0.65 0.65

Color (CCT) Y M W
3000~3300K 4000~4500K 6000~6500K
  YR20L40-02
Weight(g) 25

Origin: Made in Taiwan

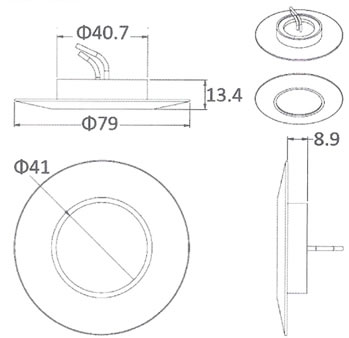

Drawing
YR20L40-03
