Part No.: YR40L150

Part Name: Recessed LED Lamp for 150 mm hole.


Description: 1.Long lift-time.
2.Sugre protect.
3.Low power Consumption.
4.Safety,very Low temperature.
5.Thin,light very Low temperature.
6.Build in 40x3 L.E.D. Chip.
7.Option : I.R. Remote control

Specification: Model No. YR40L1501 YR40L1502
Working Voltage 110/120v 220v
Power Consumption 8.2 8.2
Flux(Lm) 560 560
C.R.I. 70~80 70~80
Power Factor 0.8 0.8

Form C S
Circle Square

Color (CCT) Y M W
3000~3300K 4000~4500K 6000~6500K

Weight(g) 25

Origin: Made in Taiwan

Drawing
circle square
YR40L150-01 YR40L150-02

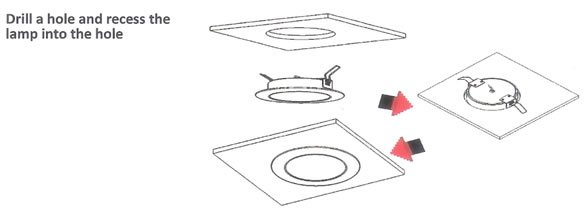

Installation
YR40L150-03
